CARAVAN SHELL
We build the body, you fit out the interior
CHOOSE YOUR PREFERRED STYLE

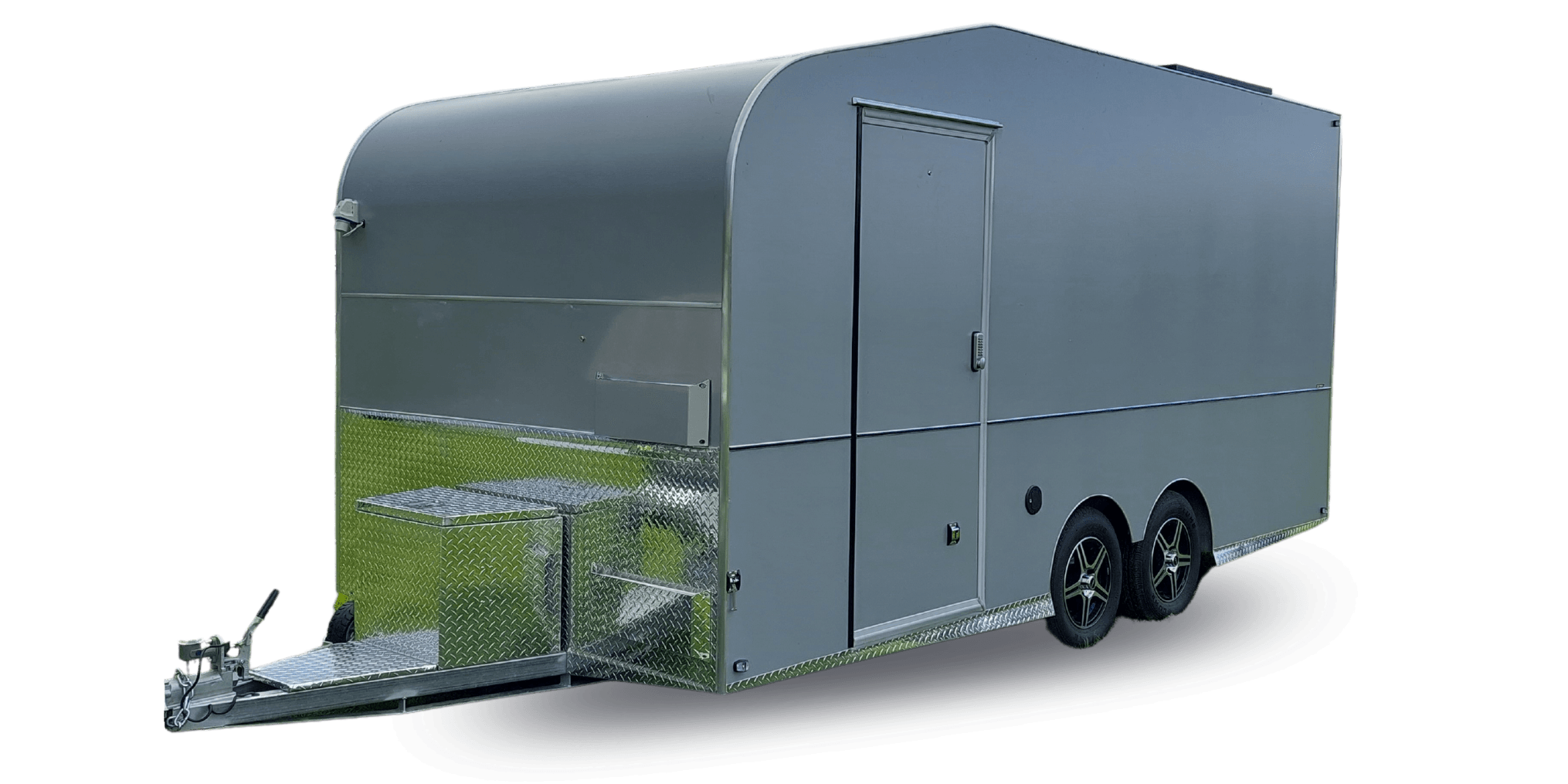

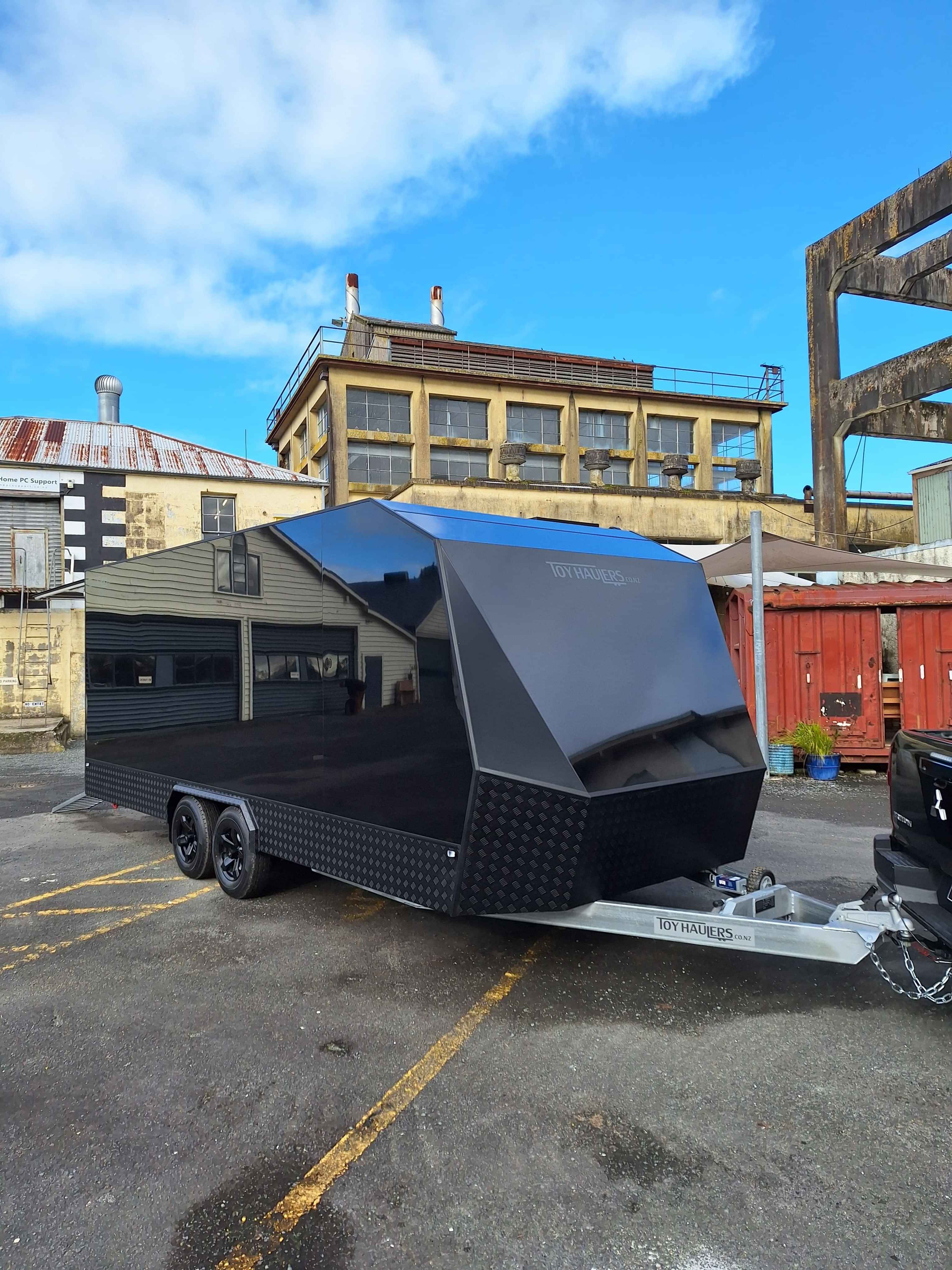

TOUGH N RUGGED CARAVAN

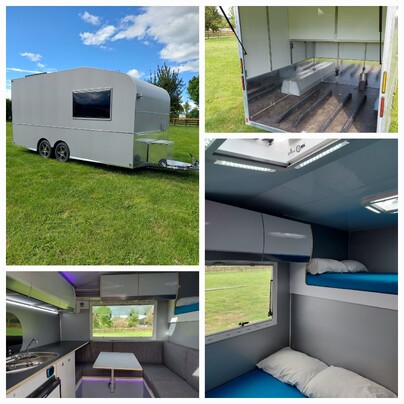

Custom Caravan
HOT DIPPED GALVANISED CHASSIS
Robust protection against corrosion, extends your Toy Haulers lifespan, reduces maintenance costs & significantly enhances its durability. We build them for NZ's tough conditions. BONUS: it extends your warranty

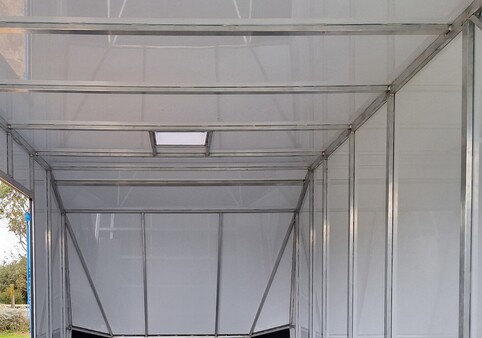

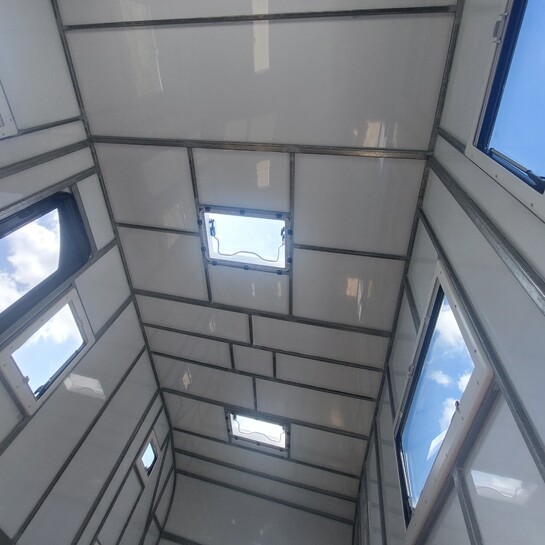

ALUMINIUM SUPERSTRUCTURE
You can save up to 360kg with aluminium walls and ceiling. Giving you a significantly higher pay load, while still while maintaining strength
BUILT TO YOUR REQUIREMENTS
Kiwis love to do things ourselves, we are here to work with you to make your perfect caravan. Together, creating a plan & ensuring it is what you are after & making sure the best solution is found. You will experience personalized service to get your custom caravan shell ready for your fit out

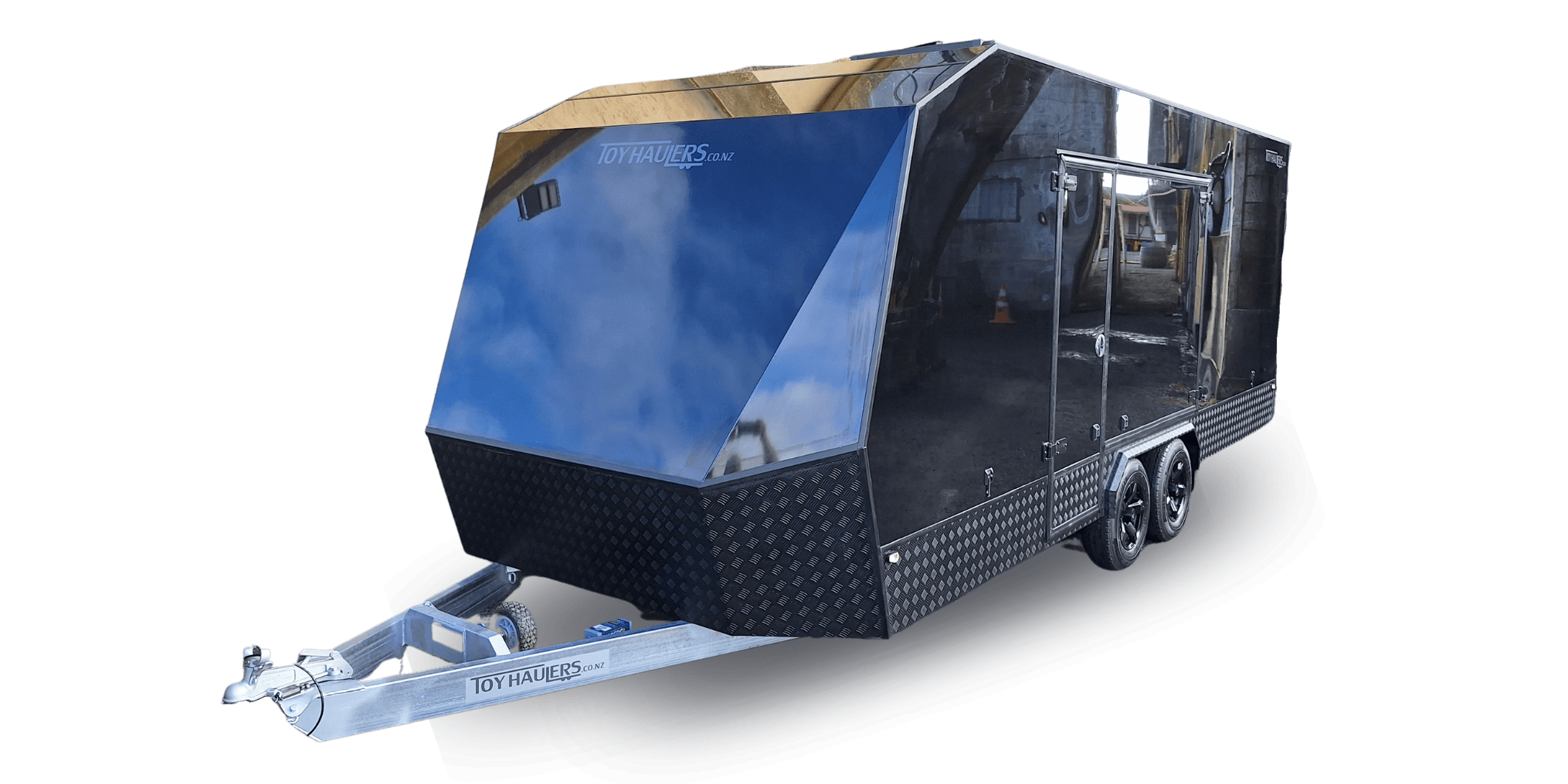

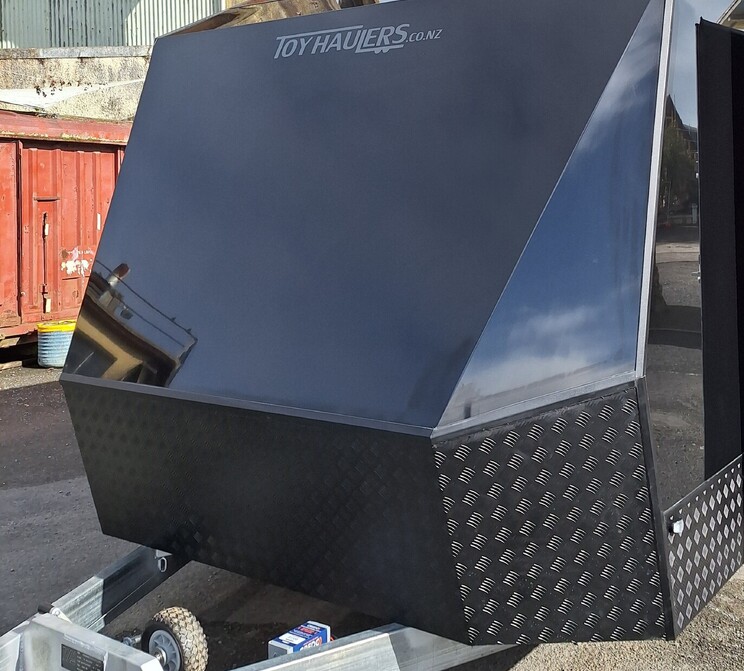

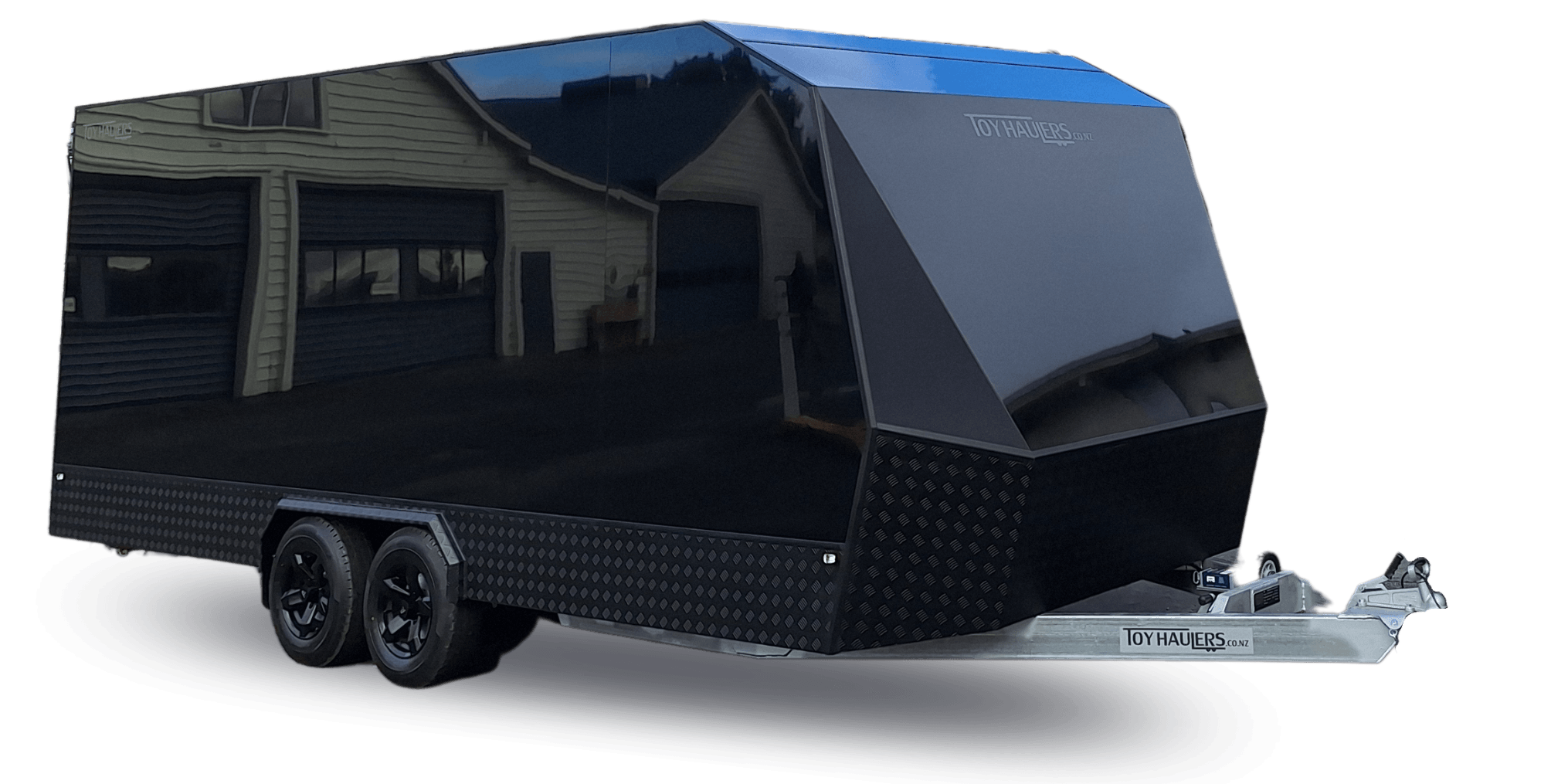

AERO-DYNAMIC BODY
Our elegant design is engineered to optimize airflow & reduce drag, resulting in improved fuel efficiency, reduced operating costs & enhanced environment sustainability while providing you with smooth & efficient towing
SEMI-OFFROAD FEATURES

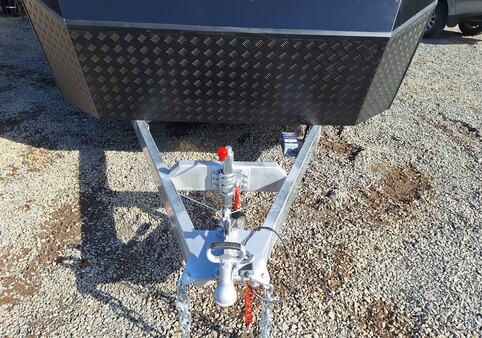

These features are heavy duty steel draw bar, offroad tyres, black mags, deck height of 500mm, great ground clearance, flared mudguards & powder coated panels
BUILT-IN TOOL BOX
The integrated tool box design means your overall trailer length is shorter while providing you with maximum storage space. Its sleek look provides higher security and is one less accessory to buy, saving you money
SPECIFICATIONS
Overview
The Tough N Rugged caravan shell is totally custom to suit your needs

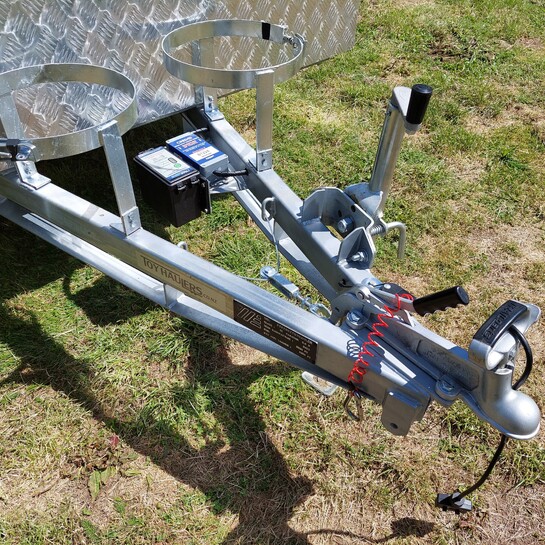

Chassis
Hot Dipped galvanized chassis
3.5 tonne rated electric brakes
Tandem axle with all 4 wheel brakes
Brake away system and safety chains
150x50x3 thick drawbar

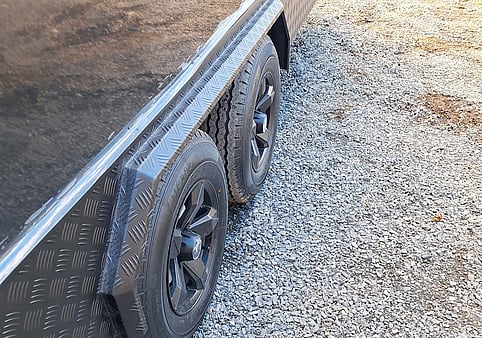

Pumped out mudguards with mudflaps

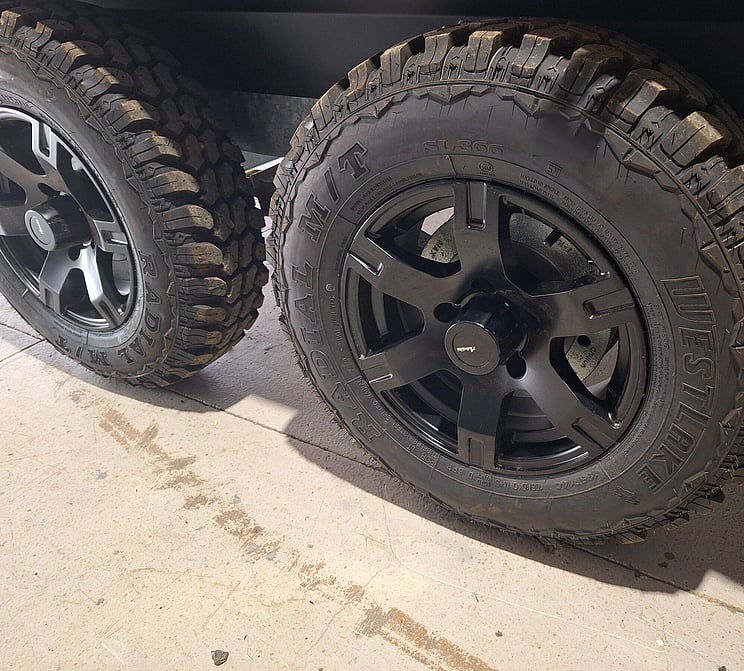

14" Offroad wheels with black mags
Jockey Stand/Wheel
Rocker Suspension
1 7/8 coupling
Tow ball height to match your tow vehicle
18mm TransTex Heavy Duty ply flooring
OPTIONS:
Body length from 3.6m to 8m body (plus drawbar)
Body width ranges 2m to 2.5m body
Width between mudguards up to 2.1m
LPG gas bottle mounts
Water tank mounts for 96L per tank
Spare wheel mount
Pull out step
Tie down points

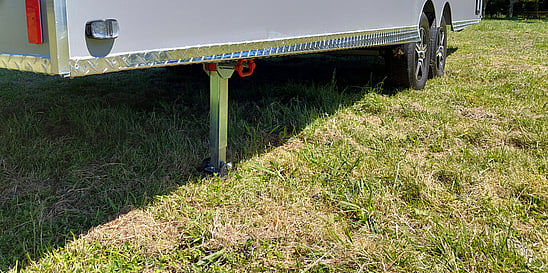

Steady Legs
External
Aluminium walls & ceiling framework
Powder coated stone guard, trims & side panels

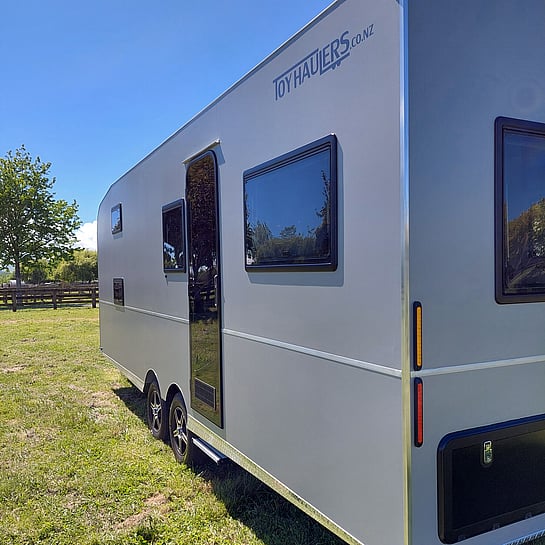

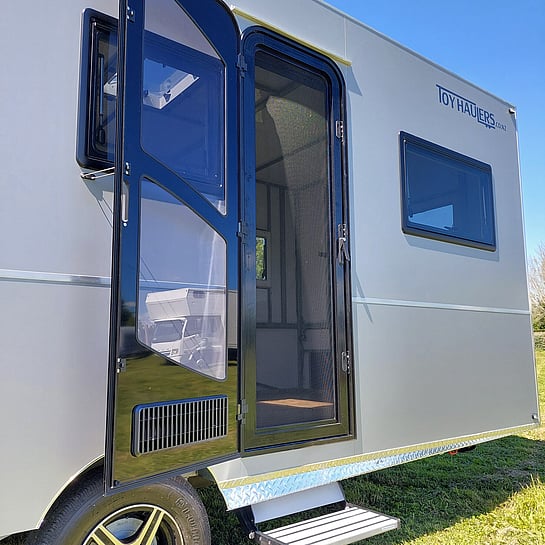

Side RV door with window/blind/security mesh
2 x Front Aluminum tool box hatches
Slimline LED tail lights & 4 Marker lights
OPTIONS:
Lift up or lower down rear/side tail door
Silver, Black or white ACM body
Height between 1.9m to 2.2m internal from deck up
Double glazed windows and vents
External shower
Wall mounted LED lights
Dual Reversing cameras
Hatches/access doors
Air conditioning
Awning, Privacy/Annex room
Internal

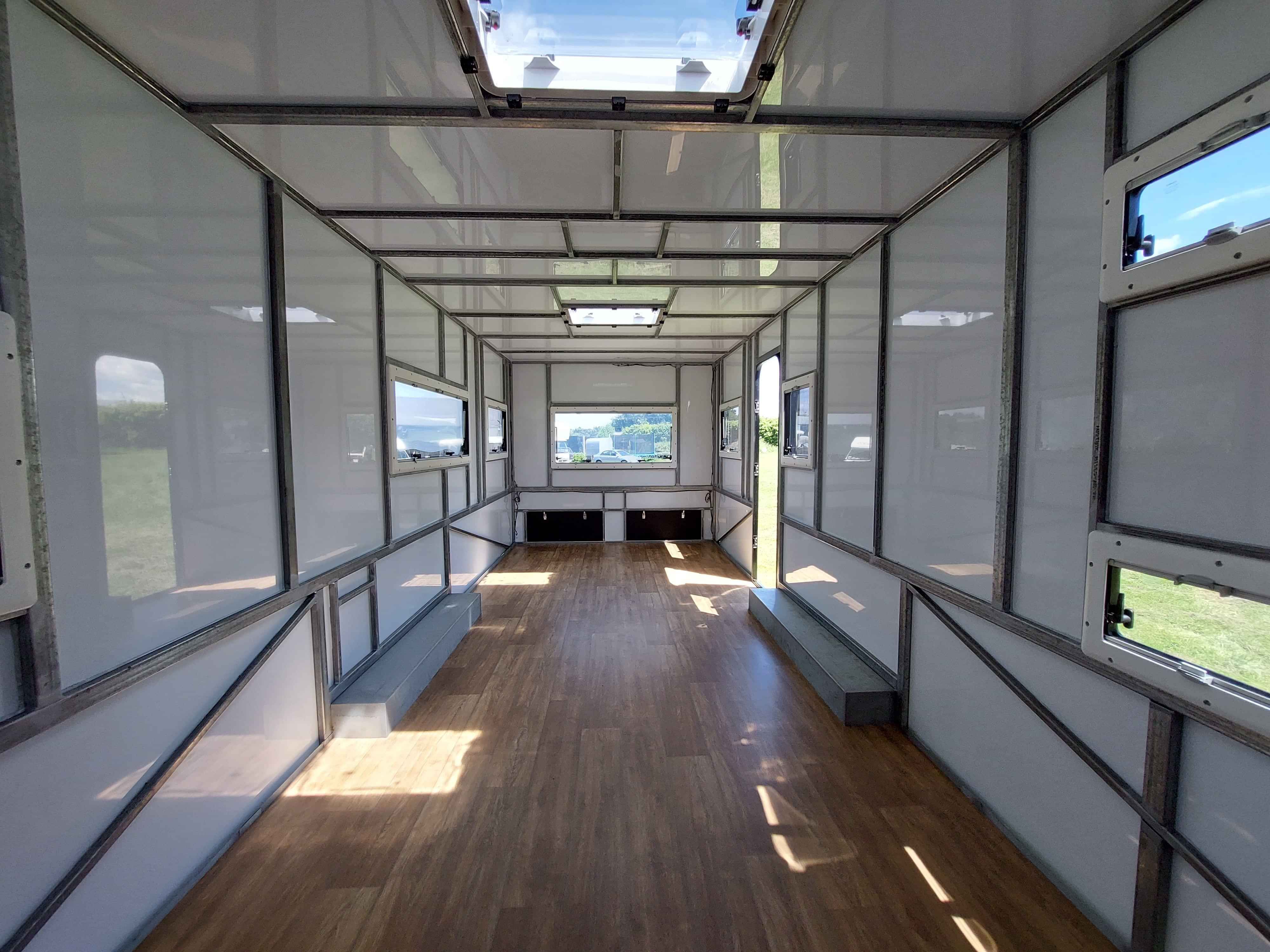

For you to kit out.
We will make sure your plan has the supports it needs for windows, vents, hatches, access doors etc
Plumbing & Electrical
For you to kit out.
We will make sure your plan has the supports it needs for water tank mounts, solar, water heaters vents, water fillers, external showers, toilet access door & vent etc
STANDARD CURVED
RV Caravan body
DURAGALV CHASSIS & FRAMEWORK
The industry standard is to use DuraGalv, providing great strength & basic protection. Every weld is thoroughly painted with zinc
CURVED FRONT
Simple and smooth curved front with joins carefully placed for water tightness. Using larger sheets of ACM up to 6.1m long to reduce the joins
LOW PROFILE OPTION
Perfect for loading vehicles or object with low ground clearance OR for a dirt bike without ramps. We can make your trailer to your desired height
TOOL BOX ON DRAWBAR
Drawbar can be made to your required length with space for standalone tool box to be mounted. Great for transporting items that need to be isolated for sound or smell etc
SPECIFICATIONS
Overview
The Classic Escape custom caravan shell is totally custom to suit your needs
Chassis
75x50x4 classic drawbar
Curved shaped mudguards
14" mag wheels
Jockey Stand/Wheel
Rocker Suspension
1 7/8 coupling
Tow ball height to match your tow vehicle
18mm TransTex Heavy Duty ply flooring
OPTIONS:
Single or Tandem axle
Straight or dropper axles
2.5 tonne hydraulic brakes or 3.5 tonne rated electric brakes
Brake away system and or safety chains
Body length from 3.6m to 8m body (plus drawbar)
Body width ranges 2m to 2.5m body
Width between mudguards up to 2.1m
Tool box on drawbar
LPG gas bottle mounts
Water tank mounts for 96L per tank
Spare wheel mount
Pull out step
Tie down points
Steady Legs
Hot Dipped galvanized chassis upgrade
External
Duragalv walls & ceiling
PA side door - ACM
Slimline LED tail lights & 4 Marker lights
OPTIONS:
Lift up or lower down rear/side tail door
Silver, Black or white ACM body
Height between 1.9m to 2.2m internal from deck up
Double glazed windows and vents
External shower
Wall mounted LED lights
Dual Reversing cameras
Hatches/access doors
Air conditioning
Awning, Privacy/Annex room
Powder coated stone guard, trims & side panels upgrade
Aluminium walls & ceiling framework upgrade
Side RV door with window/blind/security mesh upgrade
Internal
For you to kit out.
We will make sure your plan has the supports it needs for windows, vents, hatches, access doors etc
Plumbing & Electrical
For you to kit out.
We will make sure your plan has the supports it needs for water tank mounts, solar, water heaters vents, water fillers, external showers, toilet access door & vent etc
