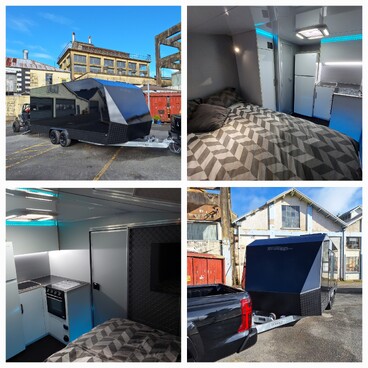

CLASSIC ESCAPE
TOY HAULER

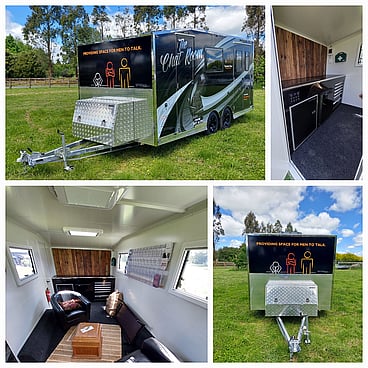

Enclosed trailer with living & garage space

STANDARD CURVED RANGE

Priced from $32,000 for 4.8m base trailer

This price include GST & is just an indication as it all depends on what you have selected. See "Specifications, Overview" for more details on base trailer

Classic Escape

DURAGALV CHASSIS & FRAMEWORK

The industry standard is to use DuraGalv, providing great strength & basic protection. Every weld is thoroughly painted with zinc

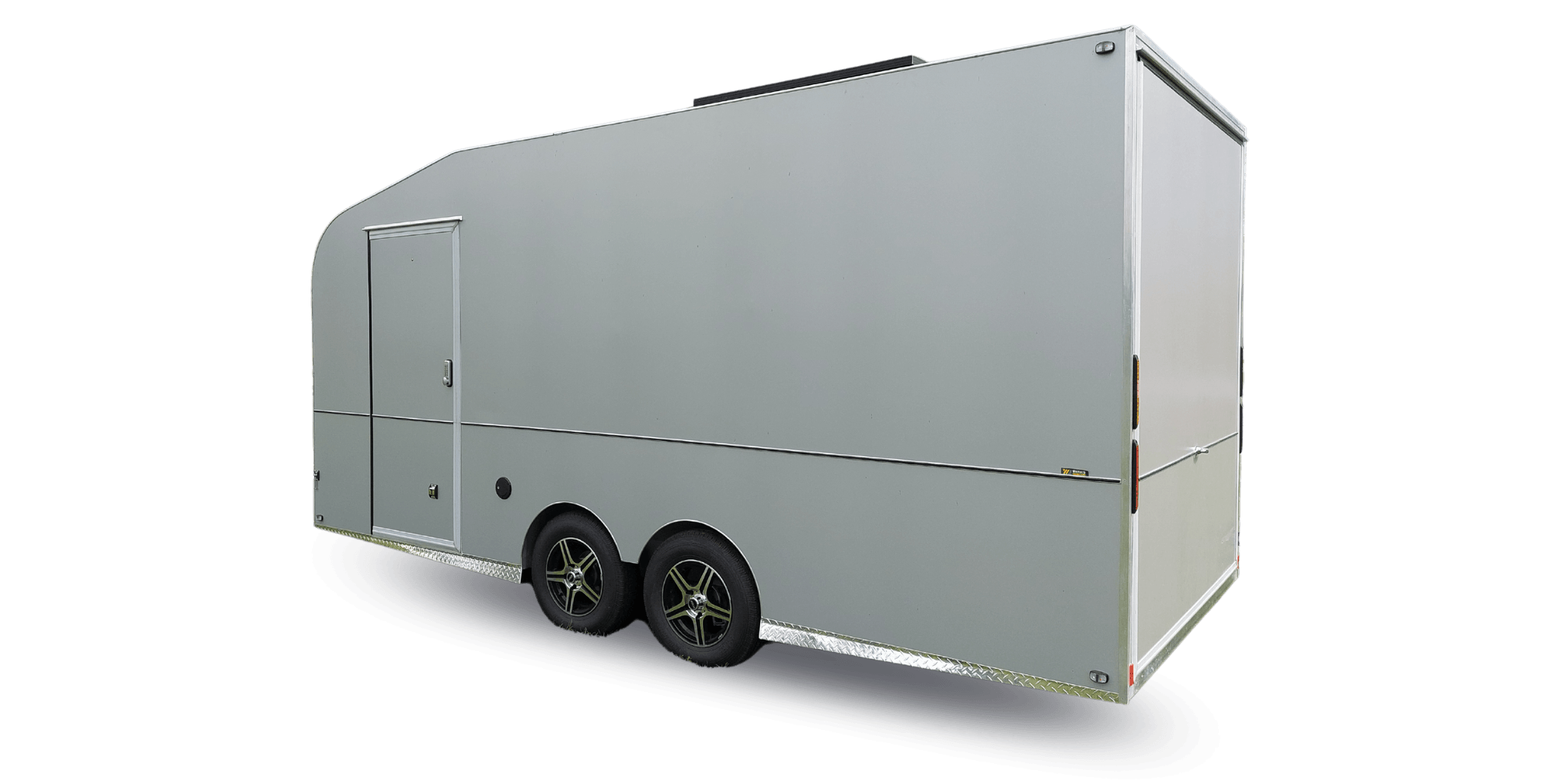

CURVED FRONT

Simple and smooth curved front with joins carefully placed for water tightness. Using larger sheets of ACM up to 6.1m long to reduce the joins on your enclosed trailer

LOW PROFILE OPTION

Perfect for loading vehicles or object with low ground clearance OR for a dirt bike without ramps. We can make your enclosed trailer to your desired height

TOOL BOX ON DRAWBAR

Drawbar can be made to your required length with space for standalone tool box to be mounted. Great for transporting items that need to be isolated for sound or smell etc

SPECIFICATIONS

Overview

The Classic Escape is totally custom to suit your needs

4.8m Base Trailer price includes: Curved front, duragalv chassis & framework, 2.2m wide, 2.0m high, tandem axle, 2.5T hydraulic brakes, rocker suspension, Unihub bearings (maintenance free), Rear lift up tail gate with struts & lock, side PA door with hold back latch & lock, front stone guard 600mm high, side skirting, jockey wheel, 18mm tough transtex ply flooring, 4 x 14"mag wheels & mudflaps, slim line LED rear tail lights & 4 LED marker lights, 1 7/8 coupling, 36 month WOF

Chassis

75x50x4 classic drawbar
Curved shaped mudguards
14" mag wheels
Jockey Stand/Wheel
Rocker Suspension
1 7/8 coupling
Tow ball height to match your tow vehicle
18mm TransTex Heavy Duty ply flooring

OPTIONS:
Single or Tandem axle
Straight or dropper axles
2.5 tonne hydraulic brakes or 3.5 tonne rated electric brakes
Brake away system and or safety chains
Body length from 3.6m to 8m body (plus drawbar)
Body width ranges 2m to 2.5m body
Width between mudguards up to 2.1m
Tool box on drawbar
LPG gas bottle mounts
Water tank mounts for 96L per tank
Spare wheel mount
Pull out step
Tie down points
Steady Legs
Hot Dipped galvanized chassis upgrade

External

Duragalv walls & ceiling framework
PA side door - ACM
Slimline LED tail lights & 4 Marker lights

OPTIONS:

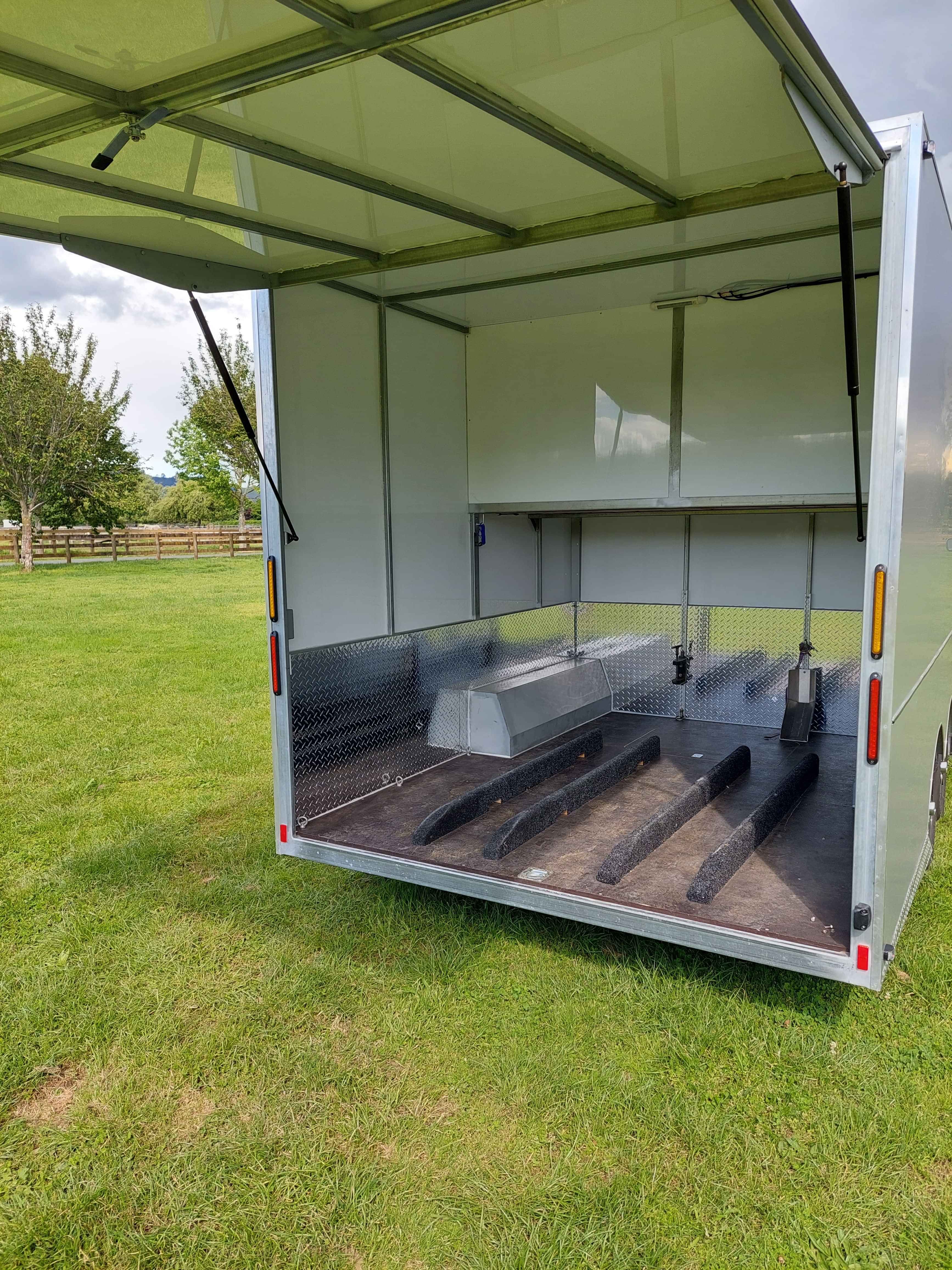

Lift up or lower down rear/side tail door
Silver, Black or white ACM body
Height between 1.9m to 2.2m internal from deck up
Ramps 1.8m Long & mounting brackets
Double glazed windows and vents
External shower
Wall mounted LED lights
Dual Reversing cameras
Hatches/access doors
Air conditioning
Awning, Privacy/Annex room
Powder coated stone guard, trims & side panels upgrade
Aluminium walls & ceiling upgrade
Side RV door with window/blind/security mesh upgrade

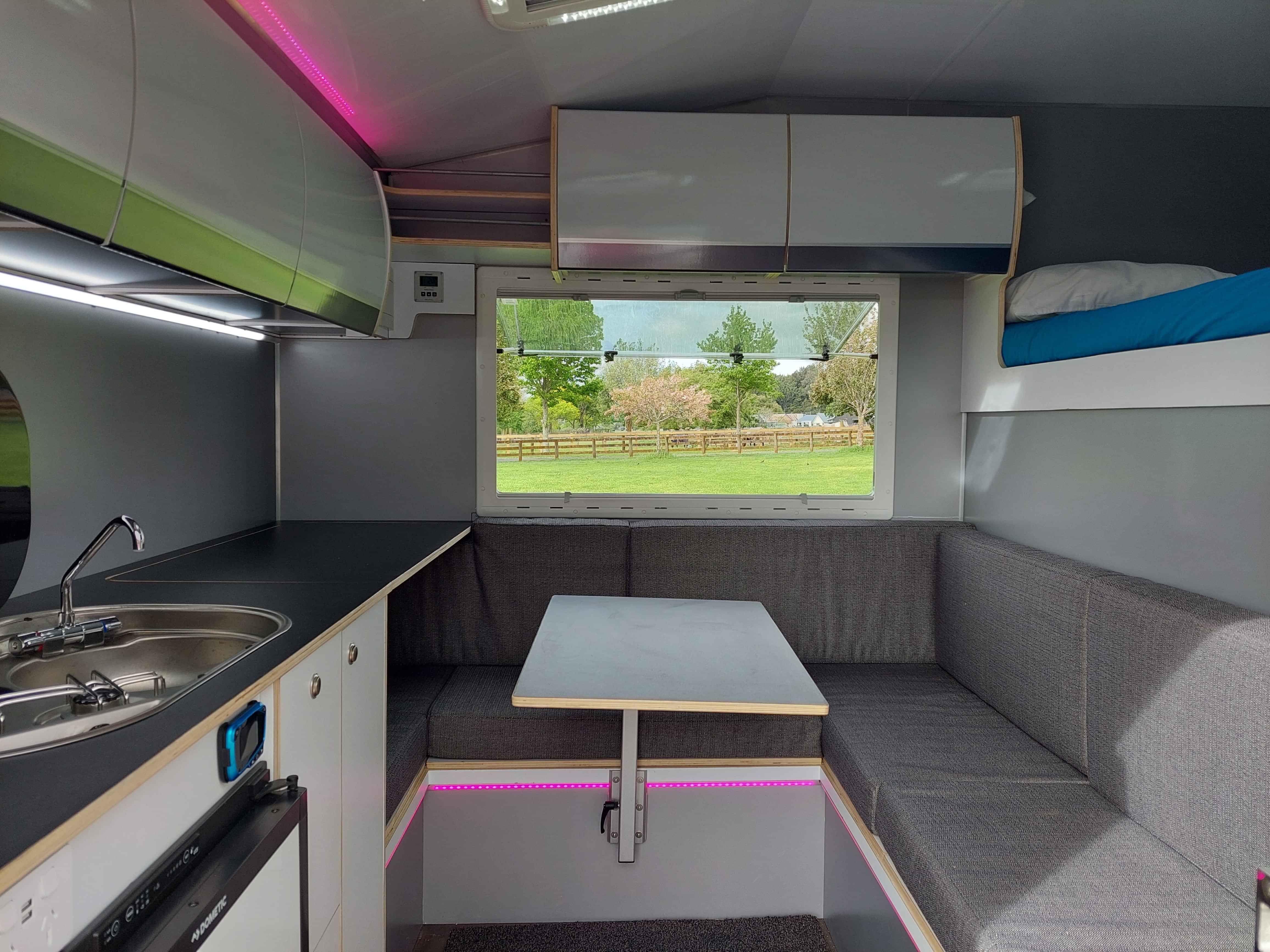

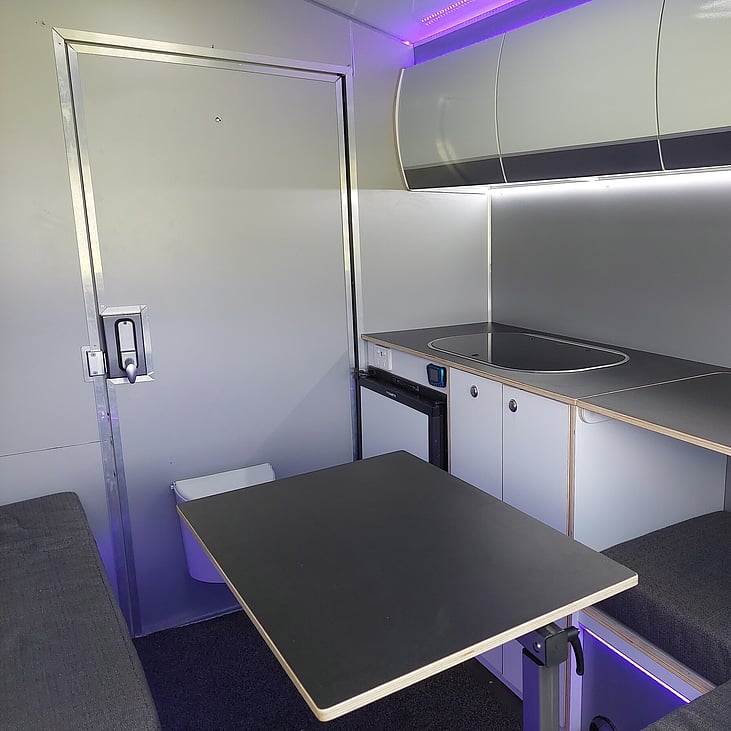

Internal

OPTIONS:
Living area walls & ceiling are insulated with PIR foam with an R value of R 1.17 & lined with caravan ply

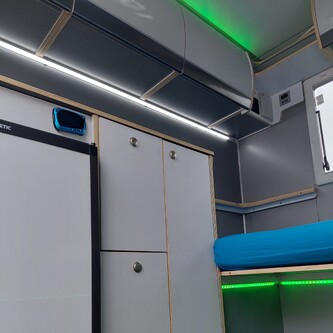

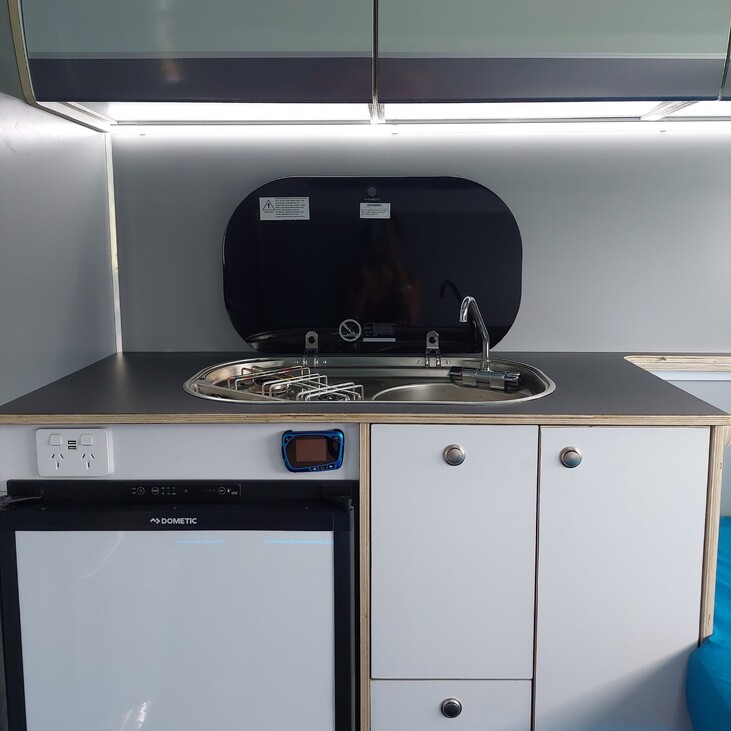

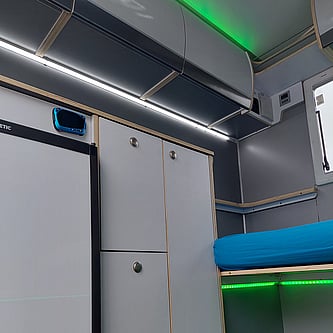

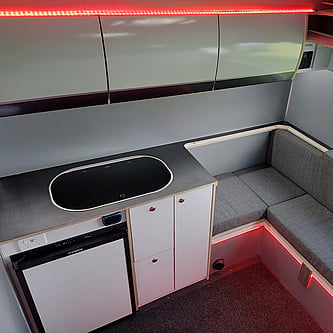

Kitchen - Sink, Cooker, Oven, Cupboards, Drawers, Fridge, Rangehood & Overhead cupboards

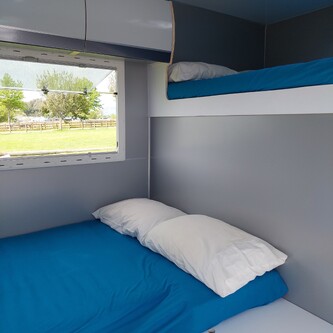

Bed - Lowering down style, Bunks that fold to bench seat, Rollover sofa to bed, Fold down from wall bed & Permanent bed with storage underneath

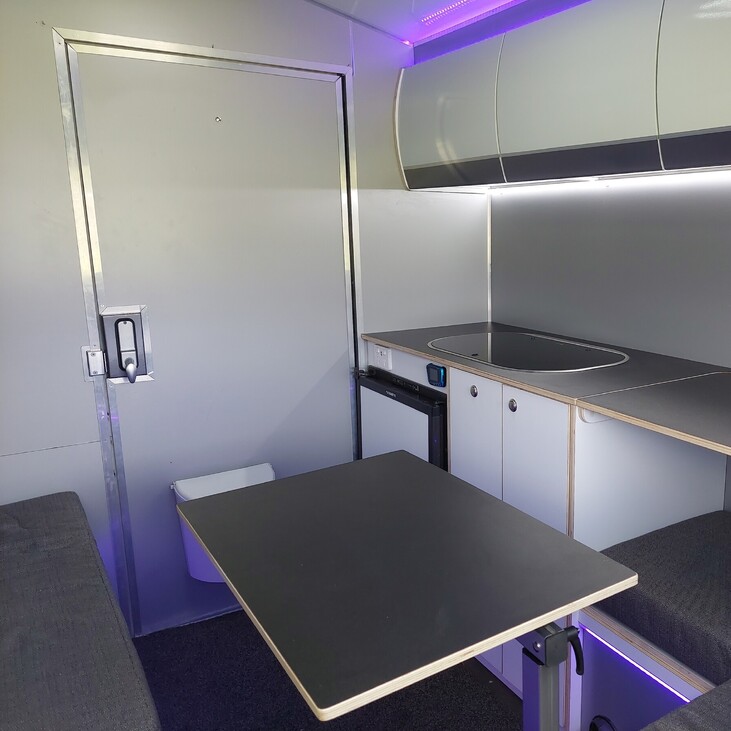

Seating area - Dinette, U or L shape lounge, Bench seats & Rollover sofa
Bathroom - Toilet, Shower, Hand basin, Shower screen, Window & Vent
Storage - Tie down points, Winch
Divider Wall - Temporary, Straight permanent, Z shaped permanent & Internal door
Furniture - Fold away table, Lowering table, pivot/removeable table, Cupboards, Rubbish bins
Vinyl flooring

Plumbing & Electrical

OPTIONS:
Quantity of 96L fresh and grey water tanks
20L Suburban Water Heater, Filter, Pump, Tempering valve, Pressure regulator
External shower
Internal shower
Electric flush Toilet 18L black water cassette with external hatch & Vent
Gas insulation certificate
Self-containment certificate

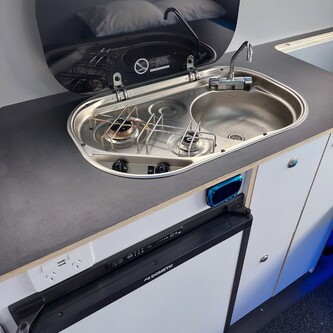

Kitchen Sink
Cooker or Oven
Bathroom Sink
Push on Water filler
Diesel Heater
TV & satellite dish
Water level gauges
Solar system
230v electrical system with electrical certificate
Generator
Inverter
Batteries
Sirocco fan II
Gas detector/Smoke alarm
LED lighting - wall, ceiling, flood lights, strip lighting
