MOBILE OFFICE

Your workspace on wheels

HELPING REACH MORE CUSTOMERS

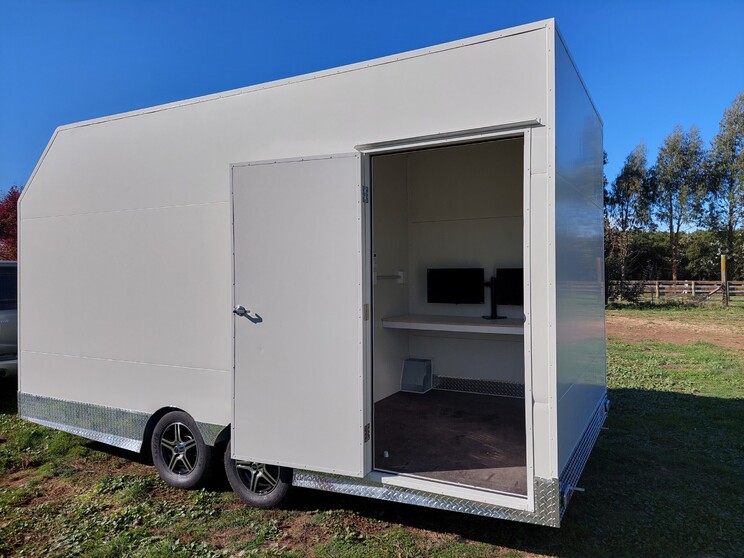

Mobile office trailers

SECURE TRANSPORTATION & STORAGE

Have your equipment safe & secure everywhere you go, with robust locks and well built designs, it will be safe from thefts & adverse weather

ACCOMMODATION ANYWHERE YOU GO

New Zealand boasts stunning locations but not all have accommodation. Therefore, a mobile office is your ideal solution, work by day & sleep by night. Needing a hotel at short notice? or worried about covid? Your mobile office has you covered

SAVE ON RENT

Ideal for going to your customers location, working in remote locations, traveling markets & roadshows. Having no building rent & multipurpose uses it really is ideal for a flexible schedule workers providing you with the best work-life balance

MORE ADVERTISING

Give a professional appearance & enhance your brand recognition with sign writing your mobile office sign & have advertising everywhere you go

FABRICATION OPTIONS

The standard mobile office trailer option is 50mm EPS Freezer Panel (Expanded Polystyrene Panel) with a R value of 1.32 for your walls and ceilings. Upgrade options of ACM 4mm with 25mm framing unlined or insulated & lined with an R value of 1.17

AN ASSET TO YOUR BUSINESS

So many benefits from having a mobile office Trailer: Save on expensive hotels, brand visibility, secure storage, flexibility, low over head costs, reach more customers & the list goes on

SPECIFICATIONS

Overview

The Mobile Office is totally custom to suit your needs

Chassis

75x50x4 classic drawbar
Curved shaped mudguards
14" mag wheels
Jockey Stand/Wheel
1 7/8 coupling
Tow ball height to match your tow vehicle
18mm TransTex Heavy Duty ply flooring

OPTIONS:
Single or Tandem axle
Straight or dropper axles
Rocker Suspension
2.5 tonne hydraulic brakes or 3.5 tonne rated electric brakes
Brake away system and or safety chains
Body length from 3.6m to 8m body (plus drawbar)
Body width ranges 2m to 2.5m body
Width between mudguards up to 2.1m

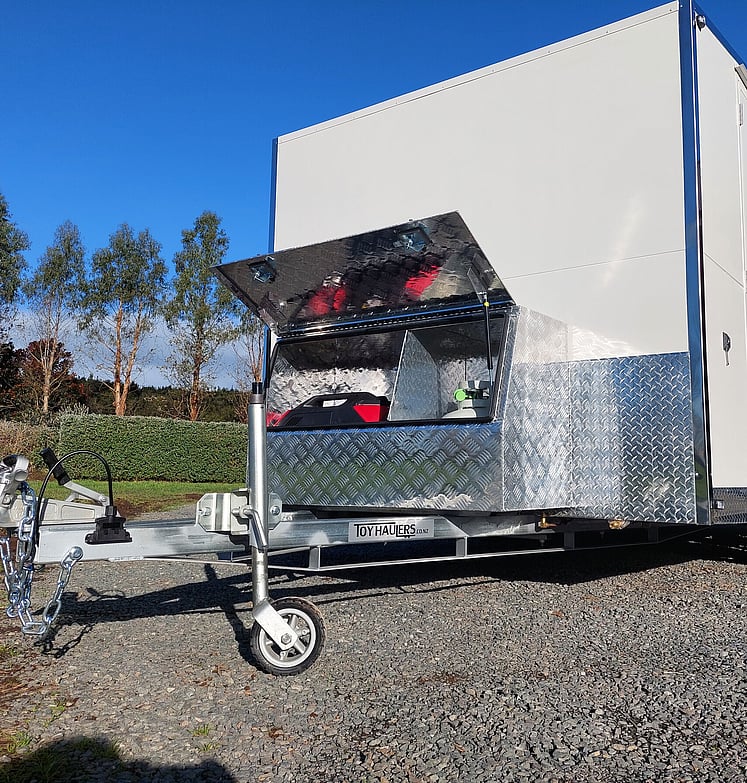

Tool box on drawbar
LPG gas bottle mounts
Water tank mounts for 96L per tank
Spare wheel mount
Pull out step
Tie down points
Steady Legs
Hot Dipped galvanized chassis upgrade

External

50mm EPS freezer panel walls and ceiling
PA side door
Slimline LED tail lights & 4 Marker lights

OPTIONS:
Lift up or lower down rear/side tail door
Height between 1.9m to 2.2m internal from deck up
Ramps 1.8m Long & mounting brackets
Double glazed windows and vents
Dual Reversing cameras
Hatches/access doors
Air conditioning
Awning
Powder coated stone guard & side panels upgrade
Stainless steel trims upgrade
Aluminium or Duragalv walls & ceiling framework with Silver, Black, White ACM body upgrade
Side RV door with window/blind/security mesh upgrade

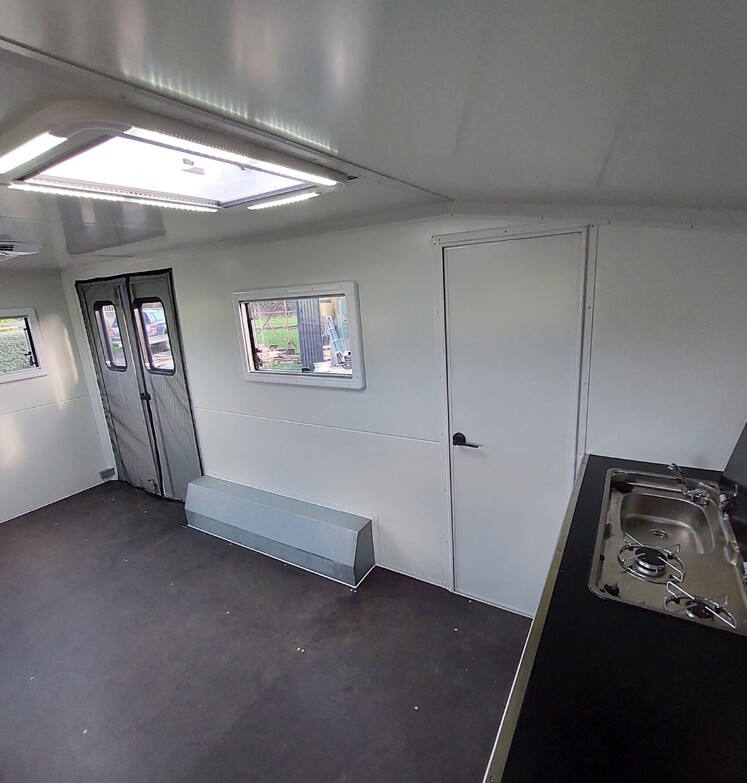

Internal

OPTIONS:
Living area walls & ceiling are insulated with PIR foam with an R value of R 1.17 & lined with caravan ply

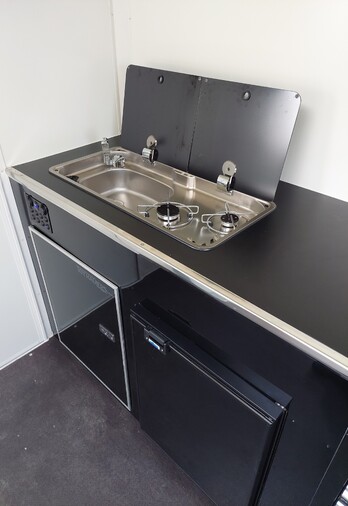

Kitchen - Sink, Cooker, Oven, Cupboards, Drawers, Fridge, Rangehood & Overhead cupboards
Bed - Lowering down style, Bunks that fold to bench seat, Rollover sofa to bed, Fold down from wall bed & Permanent bed with storage underneath
Seating area - Dinette, U or L shape lounge, Bench seats & Rollover sofa
Bathroom - Toilet, Shower, Hand basin, Shower screen, Window & Vent
Storage - Tie down points, Winch
Divider Wall - Temporary, Straight permanent, Z shaped permanent & Internal door
Furniture - Fold away table, Lowering table, pivot/removeable table, Cupboards, Rubbish bins
Vinyl flooring

Plumbing & Electrical

OPTIONS:
Quantity of 96L fresh and grey water tanks
20L Suburban Water Heater, Filter, Pump, Tempering valve, Pressure regulator
Shower
Electric flush Toilet 18L black water cassette with external hatch & Vent
Gas insulation certificate
Self-containment certificate
Kitchen Sink
Cooker or Oven
Bathroom Sink
Push on Water filler
Diesel Heater
TV & satellite dish
Water level gauges

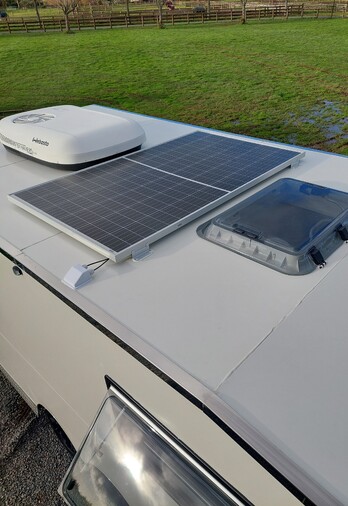

Solar system
230v electrical system with electrical certificate
Generator
Inverter
Batteries
Sirocco fan II
Gas detector/Smoke alarm
LED lighting - wall, ceiling, flood lights, strip lighting
